APPC 1940T

  • 19" TFT SXGA 4:3 Flush Panel PC with Intel® Atom™ E3826, 1.46GHz, Touch Screen, 2GB DDR3L, 3 x USB, 2 x COM, and Fieldbus port

담당자 : 김준호 과장 031-737-8812


The 19" fanless panel PC APPC 1940T incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1280 x 1024 (SXGA) resolution. The front panel which adopts flush design and complies with IP65 standard makes it the perfect fit in industrial applications.

The APPC 1940T supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two Mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, APPC 1940T can gain a strong foothold in industrial field and machine devices. In addition, APPC 1940T can hook 2nd display via a VGA port for dual independent display. APPC 1940T has two isolated RS232/422/485 ports, four isolated channels of DI and DO, and Fieldbus port.

[Feature]

  • 4:3 19" SXGA Fanless LED Panel Computer
  • Intel® Atom™ E3826, Dual Core, Low Consumption CPU
  • Flush Panel by 5-wire Touch Screen
  • Dual GbE/2nd display-VGA/Line-out/PS2 KB/MS
  • USB x 3/2 x Mini-PCIe sockets/1 x CFast/2 x RS232/422/485
  • DDR3L 2GB/2.5" HDD Bracket
  • IP65 Compliant Front Panel
  • Support fieldbus module, JMobile HMI and CODESYS SoftLogic(optional)
  • Mounting Support: Panel/Wall/Stand/VESA 100mm x 100mm
  • Wide Range Power Input 12V~ 30VDC


Panel

  • LED Size: 19", 4:3
  • Resolution: SXGA 1280x1024
  • Luminance: 350cd/m2
  • Contrast ratio: 1000
  • LCD color: 16.7M
  • Viewing Angle: 80(U), 80(D), 85(L), 85(R)
  • Backlight: LED

Touch Screen

  • 5-wire resistive (flush panel type)
  • Light transmission: 81%
  • Interface: USB

System

  • CPU: On-board Intel® Atom™ Dual Core processor E3826, 1.46GHz,1M L2 Cache
  • BIOS: AMI BIOS
  • System memory: 2 x 204-pin DDR3L SO-DIMM socket, 2GB DDR3L (Default), Support up to 8GB DDR3L-1066/1333, Non-ECC and Un-buffered
  • Storage Device:
    - 1 x external locked CFast socket
    - 1 x hard drive bay: optional 1 x 2.5" SATA HDD or 1 x SATA DOM
  • Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)
  • H/W status monitor: Monitoring system temperature, and voltage
  • Expansion: 2 x Mini-PCIe sockets (support optional Wi-Fi, 3.5G module or Fieldbus Card)

Rear I/O

  • Ethernet: 2 x RJ45
  • 2nd display VGA port: 1 x DB15
  • Audio port: 1 x Line-out
  • USB: 2 x USB2.0, 1 x USB3.0
  • PS2 keyboard/mouse Power switch
  • Reset button
  • 2-pin Remote Power on/ off switch
  • DIO w/ 2.5kv isolated (Optional):
    - 4 x Digital Input (Source type)
    - Input Voltage (Dry Contact): Logic 0: Close to GND
    - Logic 1: Open
    - Input Voltage: Logic 0: 3V max
    - Logic 1: +5V ~ +30V
    - 4 x Digital Output (Sink type)
    - Output Voltage: 3.6V ~ 5V
    - Sink current: 200 mA max. per channel
  • COM #1: RS232/422/485 w/ 2.5kv isolated
  • COM #2: RS232/422/485 w/ 2.5kv isolated
  • Fieldbus: (Protocol interface Optional)
    - FBI90E-PNM: ProfiNET Master, Dual RJ-45
    - FBI90E-EP: Ethernet/IP Master, Dual RJ-45
    - FBI90E-ECM: EtherCAT Master, Dual RJ-45
    - FBI90E-PBM: Profibus Master, DB9
    - FBI90E-DNM: DeviceNet Master, 5-pins Phoenix Contact Terminal

Audio

  • HD audio codec: Realtek ALC886-GR
  • Audio interface: Line-out/Line-in(Optional)/MIC-in(Optional)

Ethernet

  • LAN chip: dual Intel® I210AT Gigabit LAN
  • Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

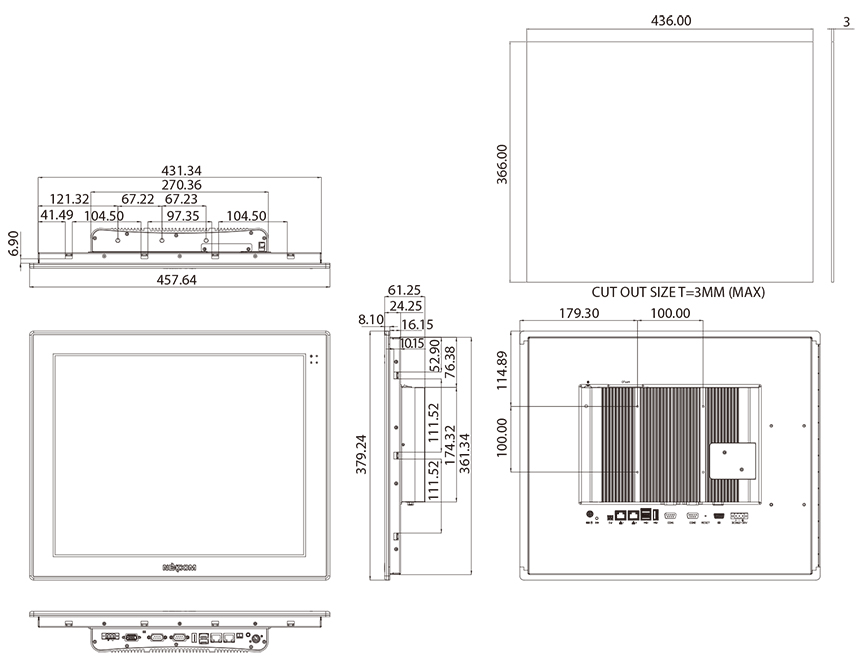

  • Dimension: 457.64 x 379.24 x 61.25 mm Weight: 6.7 Kg
  • Weight: 6.7 Kg




  • CE approval
  • FCC Class A
