IPPC 1560TE

  • 15" TFT XGA 4:3 Heavy Industrial Panel PC with 3rd Generation Intel® Core™ i5, 2.7GHz
김준호 과장 : 031-737-8812

IPPC 1560TE is a heavy industrial panel PC equipped with powerful 2nd/3rd generation Intel® Core™ processor, TFT LCD panel with LED backlight and userfriendly touch screen. It provides two expansion slots to support PROFINET, PROFIBUS, DeviceNet, EtherNet/IP and EtherCAT protocols. The NEMA4/IP66 rated heavy-duty aluminum front bezel and the vibration-resistant rugged chassis are specifically designed for outdoor and harsh industrial environments. IPPC 1560TE is ideal for use in oil and gas rig, wind farms, chemical factories, pharmaceutical factories, and hazardous working area.

  • [Main Feature]
    • 4:3 15" XGA Fanless Panel Computer
    • Powerful 2nd/3rd generation Intel® Core™ processor
    • Two expansion slots for add-on PCI or/and PCIe cards
    • Optional 3.5G/Wi-Fi module/2.5" HDD/3 x COM/GPIO/DIO/Dimming Control Button
    • Metal housing with robust aluminum front bezel for harsh environment
    • IP65 compliant front panel
    • Support fieldbus module, JMobile HMI and CODESYS SoftLogic (optional)
    • For Class I, Division 2 Hazardous Locations


    System

    • CPU: Support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988
      - Intel® Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W)(Default)
    • BIOS: AMI BIOS
    • System chipset: Intel® HM76 Express chipset
    • System memory: 1 x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (Default),support up to 8GB DDR3-1066/1333, non-ECC and un-buffered
    • Storage device:
      - 1 x external locked CFast socket
      - 2 x hard drive bay: optional 2 x 2.5" SATA HDD
    • Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)
    • H/W status monitor: monitoring system temperature, and voltage
    • Expansion:
      2 x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module)
      2 x expansion slots for add-on PCI or/and PCIe cards
      - 1 x PCI and 1 x PCIex4 slots (Default)
      - 2 x PCIex4 slots
      - 2 x PCI slots

    Rear I/O

    • 2nd display VGA port: 1 x DB15
    • Ethernet: 2 x RJ45
    • USB: 4 x USB2.0 (Hidden)
    • COM #1: RS232/422/485 w/ 2.5kv isolated protection
    • COM #2: RS232/422/485 w/ 2.5kv isolated protection
    • COM #3: RS232 w/ RI or 5V or 12V selection
    • ATX Power switch
    • Reset button

    Audio

    • HD Codec: Realtek ALC886-GR
    • Audio interface: Line-out/Line-in/MIC-in audio Jack

    Ethernet

    • LAN chip: dual Intel® 82574L Gigabit LAN
    • Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

    Fieldbus

    Support up to two fieldbus module (1 universal kit and 1 special kit)

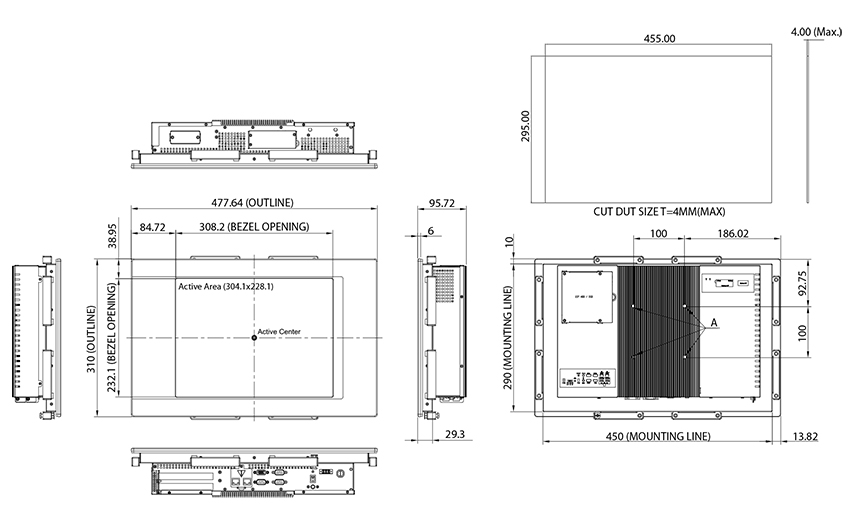

    • Dimension: 477.64 x 310 x 95.72mm
    • Weight: 9.51Kg



    • CE (including EN61000-6-2/EN61000-6-4)
    • FCC Class A
    • UL508
    • C1D2: USL-ANSI/ISA 12.12.01-2013
    • CNL-CSA C22.2 No. 213-M1987
