IPPC 1960T

  • 19" TFT SXGA 4:3 Heavy Industrial Panel PC with 3rd Generation Intel® Core™ i5, 2.7GHz
김준호 과장 : 031-737-8812

IPPC 1960T is a heavy industrial panel PC equipped with powerful 2nd/3rd generation Intel® Core™ processor, TFT LCD panel with LED backlight and userfriendly touch screen. It provides two expansion slots to support PROFINET, PROFIBUS, DeviceNet, EtherNet/IP and EtherCAT protocols. The NEMA4/IP66 rated heavy-duty aluminum front bezel and the vibration-resistant rugged chassis are specifically designed for outdoor and harsh industrial environments. IPPC 1960T is ideal for use in oil and gas rig, wind farms, chemical factories, pharmaceutical factories, and hazardous working area.


  • [Main Feature]
    • 4:3 19" SXGA Fanless Panel Computer
    • Powerful 2nd/3rd generation Intel® Core™ processor
    • Two expansion slots for add-on PCI or/and PCIe cards
    • Optional 3.5G/Wi-Fi module/2.5" HDD/3 x COM/GPIO/DIO/Dimming Control Button
    • Front accessible USB2.0 for easy of field maintenance
    • Metal housing with robust aluminum front bezel for harsh environment
    • IP66 compliant front panel
    • Support fieldbus module, JMobile HMI and CODESYS SoftLogic (optional)
    • Wide range DC power input model


    System

    • CPU: Support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988
      - Intel® Core™ i7-3540M (2 x 3GHz, 4M cache, Max. TDP 35W)
      - Intel® Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W)(Default)
      - Intel® Core™ i3-3120ME (2 x 2.4GHz, 3M cache, Max. TDP 35W)
      - Intel® Celeron® B810 (2 x 1.6GHz, 2M cache, Max. TDP 35W)
    • BIOS: AMI BIOS
    • System chipset: Intel® HM76 Express chipset
    • System memory: 1 x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (Default),support up to 8GB DDR3-1066/1333, non-ECC and un-buffered
    • Storage device:
      - 1 x external locked CFast socket
      - 2 x hard drive bay: optional 2 x 2.5" SATA HDD
    • Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
    • H/W status monitor: monitoring system temperature, and voltage
    • Expansion:
      2 x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module)
      2 x expansion slots for add-on PCI or/and PCIe cards
      - 1 x PCI and 1 x PCIex4 slots (default)
      - 2 x PCIex4 slots
      - 2 x PCI slots
    • Panel backlight control button: increase brightness/decrease brightness/backlight on/off (for IPPC 1960TP2E-AC only)

    Rear I/O

    • For All
      2 x PS2 keyboard/mouse
      2nd display VGA port: 1 x DB15
      Ethernet: 2 x RJ45
      USB: 5 x USB2.0 (1 in front)
      Audio port: 1 x Line-out; 1 x Line-in; 1 x MIC-in
    • For IPPC 1960TP2E-DC only
      COM #1: RS232/422/485 w/ RI or 5V or 12V selection
      COM #2: RS232/422/485 w/ RI or 5V or 12V selection
      COM #3: RS232 w/ RI or 5V or 12V selection
      ATX power switch
      Reset button
    • For IPPC 1960TP2E-AC only
      COM #1: RS232/422/485 w/ 2.5kv isolated protection
      COM #2: RS232/422/485 w/ 2.5kv isolated protection
      COM #3: RS232 w/ RI or 5V or 12V selection
      COM #4: RS232 w/ RI or 5V or 12V selection
      COM #5: RS232
      COM #6: RS232
      DIO w/ 2.5kv isolated protection:
      - 4 x digital input (source type)
      - 4 x digital output (sink type)
      GPIO: 4 x Digital In/4 x Digital Out
      LPT: parallel port
      AC power switch
      Reset button

    Audio

    • HD Codec: Realtek ALC886-GR
    • Audio interface: Line-out/Line-in/MIC-in audio Jack

    Ethernet

    • LAN chip: dual Intel® 82574L Gigabit LAN
    • Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

    Fieldbus

    • IPPC 1960TP2E-DC: support up to two Fieldbus Module (1 universal Kit and 1 special kit)
    • IPPC 1960TP2E-AC: support one special Fieldbus Module kit

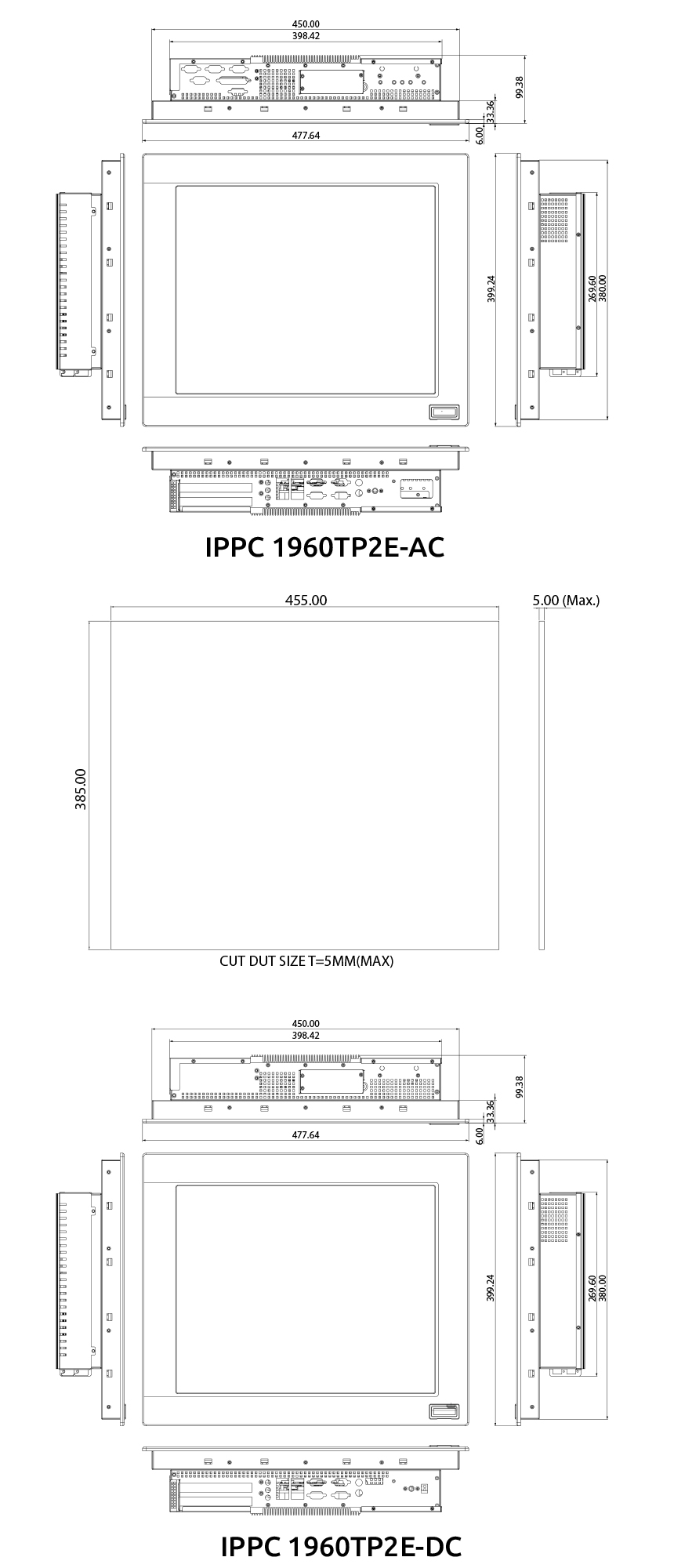

    • Dimension: 477.64 x 399.24 x 99.38mm
    • Weight: -AC: 11.2Kg
      -DC: 10.6Kg




    • CE (including EN61000-6-2/EN61000-6-4)
    • FCC Class A
    • -AC: LVD 60950-1
