IPPC 2160P

  • 21.5" TFT Full HD 16:9 Heavy Industrial Panel PC with 3rd Generation Intel® Core™ i5, 2.7GHz, Multi-Touch
김준호 과장 : 031-737-8812

IPPC 2160P is a heavy industrial panel PC equipped with powerful 2nd/3rd generation Intel® Core™ processor, TFT LCD panel with LED backlight and userfriendly touch screen. It provides two expansion slots to support PROFINET, PROFIBUS, DeviceNet, EtherNet/IP and EtherCAT protocols. The NEMA4/IP66 rated heavy-duty aluminum front bezel and the vibration-resistant rugged chassis are specifically designed for outdoor and harsh industrial environments. IPPC 2160P is ideal for use in oil and gas rig, wind farms, chemical factories, pharmaceutical factories, and hazardous working area. IPPC 2160P has two isolated RS232/422/485 ports and fieldbus ports.


[Main Feature]

  • 16:9 21.5" Full HD fanless LED panel computer
  • Powerful 2nd/3rd generation Intel® Core™ processor
  • Two expansion slots for add-on PCI or/and PCIe cards
  • Optional 3.5G/Wi-Fi module/2.5" HDD/3 x COM/GPIO/DIO/Dimming control button
  • 10 points P-Cap multi-touch with zero bezel flush front design
  • Metal housing with robust aluminum front bezel for harsh environment
  • IP66 compliant front panel
  • Anti-scratch surface: 7H hardness
  • Support fieldbus module, JMobile HMI and CODESYS SoftLogic (optional)
  • Optional: AC power input model/DC power input model


Panel

  • LED size: 21.5", 16:9
  • Resolution: Full HD 1920 x 1080
  • Luminance: 300cd/m2
  • Contrast ratio: 5000
  • LCD color: 16.7M
  • Viewing angle: 89(U), 89(D), 89(L), 89(R)
  • Backlight: LED

Touch

  • Ten points P-Cap (Projected Capacitive Touch)
  • Touch light transmission: 87%
  • Anti-scratch surface: 7H hardness
  • Touch interface: USB
  • Windows 8 compliance

System

  • CPU: support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988
    - Intel® Core™ i7-3540M (2 x 3GHz, 4M cache, Max. TDP 35W)
    - Intel® Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W) (default)
    - Celeron® 1020E (2.2GHz, 2M cache, Max. TDP 35W
  • BIOS: AMI BIOS
  • System chipset: Intel® HM76 Express chipset
  • System memory: 1 x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (default), Support up to 8GB DDR3-1066/1333, non-ECC and unbuffered
  • Storage device:
    - 1 x external locked CFast socket
    - 2 x hard drive bay: optional 2 x 2.5" SATA HDD
  • Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
  • H/W status monitor: monitoring system temperature, and voltage
  • Expansion: 2 x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module)
    - 2 x expansion slots for add-on PCI or/and PCIe cards
    - 1 x PCI and 1 x PCIex4 slots (default)
    - 2 x PCIex4 slots
    - 2 x PCI slots
  • Panel backlight control button: increase brightness/decrease brightness/backlight on/offAdd (for IPPC 2160PP2E-AC only)

Rear I/O

  • For All
    2 x PS2 keyboard/mouse
    2nd display VGA port: 1 x DB15
    Ethernet: 2 x RJ45
    USB: 4 x USB 2.0
    Audio port: 1 x Line-out; 1 x Line-in; 1 x MIC-in
  • For IPPC 2160PP2E-DC only
    COM #1: RS232/422/485 w/ RI or 5V or 12V selection
    COM #2: RS232/422/485 w/ RI or 5V or 12V selection
    COM #3: RS232 w/ RI or 5V or 12V selection
    ATX power switch
    Reset button
  • For IPPC 2160PP2E-AC only
    COM #1: RS232/422/485 w/ 2.5kv isolated protection
    COM #2: RS232/422/485 w/ 2.5kv isolated protection
    COM #3: RS232 w/ RI or 5V or 12V selection
    COM #4: RS232 w/ RI or 5V or 12V selection
    COM #5: RS232
    COM #6: RS232
    DIO w/ 2.5kv isolated protection:
    - 4 x digital input (source type)
    - 4 x digital output (sink type)
    GPIO: 4 x Digital In/4 x Digital Out
    LPT: parallel port
    AC power switch
    Reset button

Audio

  • HD Codec: Realtek ALC886-GR
  • Audio interface: Line-out/Line-in/MIC-in audio Jack

Ethernet

  • LAN chip: dual Intel® 82574L Gigabit LAN
  • Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Fieldbus

  • IPPC 2160PP2E-DC: support up to two Fieldbus Module (1 universal Kit and 1 special kit)
  • IPPC 2160PP2E-AC: support one special Fieldbus Module kit

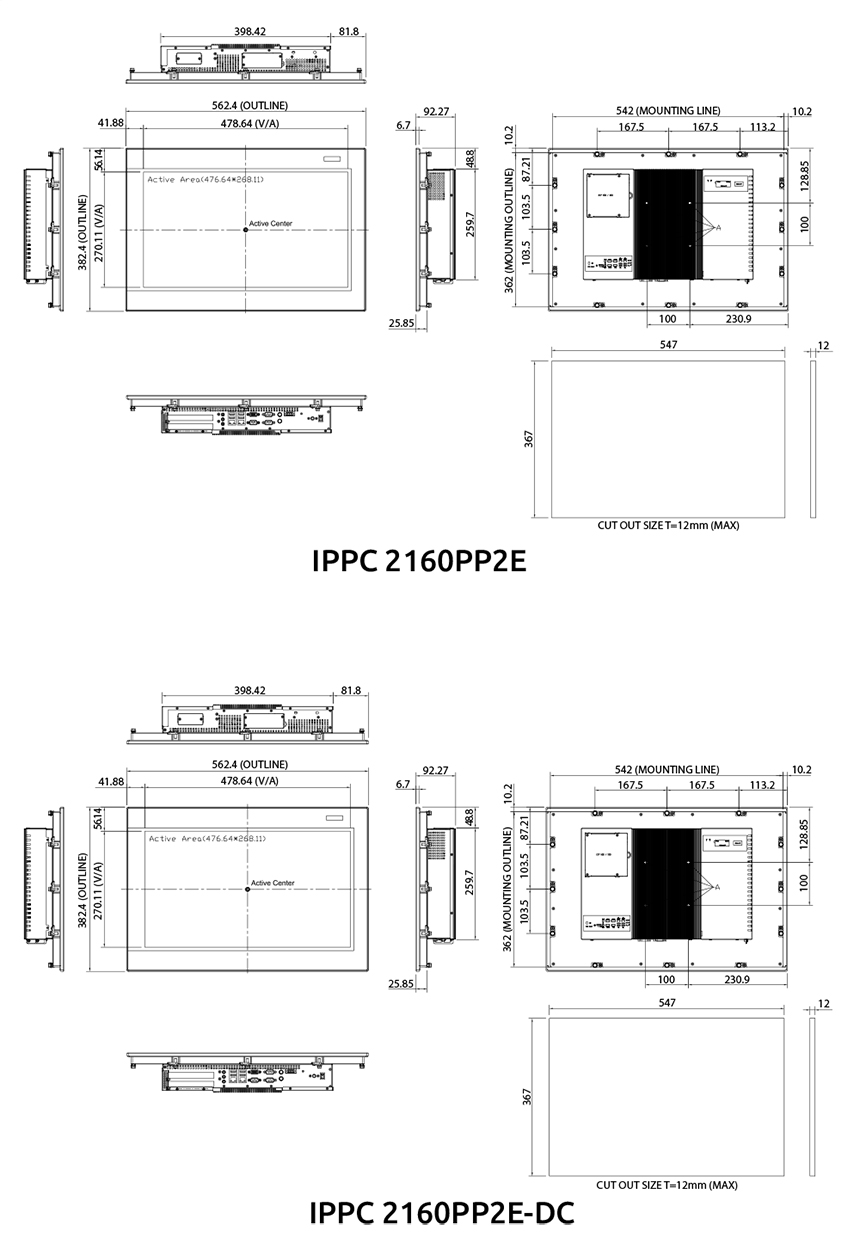

  • Dimension: 562.4mm x 382.4mm x 92.27mm
  • Weight: 11.9Kg for IPPC2160PP2E-DC
    12.51Kg for IPPC2160PP2E-AC




  • CE (including EN61000-6-2/EN61000-6-4)
  • FCC Class A
  • AC: LVD 60950-1
