NISE 104

  • Intel® Atom™ Dual Core D2550 1.86 GHz Fanless System

Powered by Intel® Atom™ Dual Core D2550 1.86 GHz and NM10 PCH, NISE 104 has higher graphic and computing performance, but 3 Watts less power consumption compared with previous Atom platform! With performance enhance, NISE 104 still follow NISE guideline with fanless and cables-less concept housed in a compact chassis, 185mm (W) x 131mm (D) x 54mm (H). The NISE 104 offers dual independent display capability through DVI-I and HDMI connectors, Dual Intel GbE LAN ports, 6x USB2.0, 2x RS-232, 2x RS-232/422/485, CFast socket and miniPCIe socket for optional wireless module connection, either WiFi or 3.5G module.

NISE 104's support for 9-36V DC input enhances its reliability in different power condition in factory automation or machinery automation. With Dual independent display and super graphic performance, the NISE 104 is an idea choice for public information, self-service Kiosk, access control or data acquisition controller…etc.


[Benefits]

  • Fanless and cables-less concept housed in a compact chassis
  • Daul independent display(DVI-I + HDMI)
  • Dual intel Gbe LAN, 6x USB2.0, 4x COM

CPU Support

  • Onboard Intel® Atom™ Dual Core processor D2550, 1.86 GHz, 1M L2 cache
  • Intel® NM10 Express chipset

Main Memory

  • 1 x DDR3 SO-DIMM sockets, support up to 4G DDR3 -800/1066 SDRAM, un-buffered and non-ECC

I/O Interface

-Front

  • ATX power on/off switch
  • HDD access/ power status LEDs
  • 4x COM ports (COM2& 3: RS-232/422/485)
  • 2x USB2.0 port
  • Audio jack (speaker-out & Mic-in)
  • 2x antenna holes

I/O Interface

-Rear

  • Dual Intel® 82574L GbE LAN ports; Support WoL, teaming and PXE
  • 4x USB2.0 port
  • 1x HDMI 1x DVI-I (support VGA & DVI-D display via cable)
  • 1x 2-pin DC input, Support +10 to 28VDC input
  • 1x external screwed type CFast socket

Device

  • 1x 2.5" HDD driver bay
  • 1x External CFast Socket
  • 1 x mini-PCIe socket (support optional Wi-Fi or 3.5G module)

Power

Requirements

  • Support +10 to 28VDC input
  • 1x optional 12V, 60W power adapter

Construction

  • Aluminum chassis with fanless design

Environment

  • Operating temperature: Ambient with air flow: -5°C ~ 55°C
    (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage temperature: -20°C ~ 80°C
  • Relative humidity: 10% to 93% (non-Condensing)
  • Shock protection:
    - HDD: 20G, half sine, 11ms, IEC60068-2-27
    - CFast: 50G, half sine, 11ms, IEC60068-2-27
  • Vibration protectionw/ HDD Condition
    Random: 0.5Grms @5~500 Hz according to IEC60068-2-6
    Sinusoidal: 0.5Grms @5~500 Hz according to IEC60068-2-6

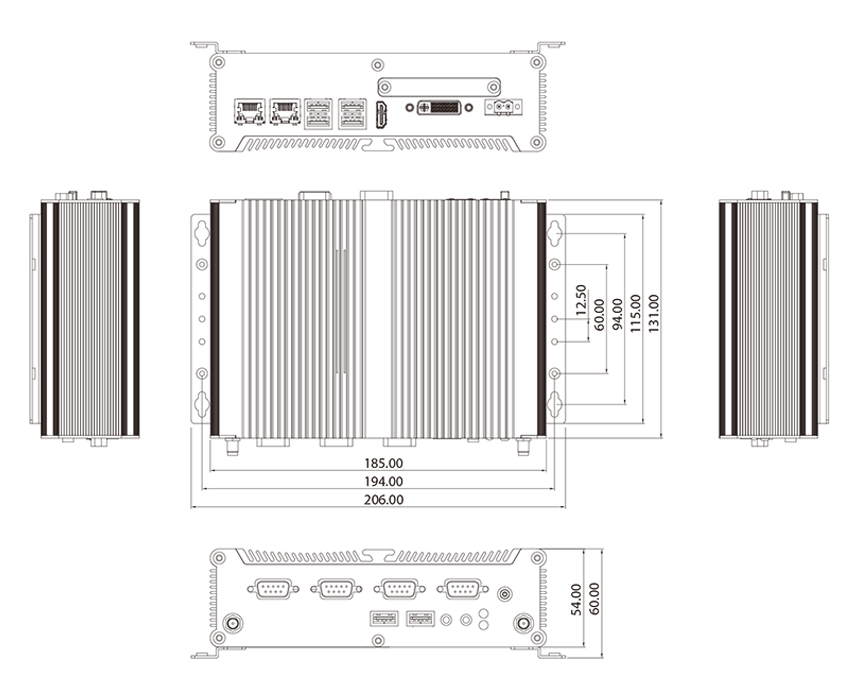

  • 185mm(W) x 131mm(D) x 54mm(H) (7.28"x 5.2"x 2.13")



  • CE approval
  • FCC Class A
  • UL
