NISE 300

  • Intel 4th Core i5 Fanless System with 6 mini-PCIe expansion and User-friendly front I/O design

The high performance NISE 300, which is integrated with 4th generation Intel® Core™ i5 processor and Lynx Point QM87 PCH, can provide outstanding system performance and presents a brand new opportunity for both intelligent and industrial computing solutions. NISE 300 supports up to 8G un-buffered and non-ECC DDR3/ DDR3L memory, CFast , SATAIII, the latest USB 3.0 technology. Support both +12 and +24 DC input and the operating temperature range is from -5 Celsius degree to 55 Celsius degree. NISE 300 comes with user-friendly I/O design; all I/O interfaces are at front panel and it makes system much easier to use and to expand the functionalities. It's mechanical design also fits with 2U 19” rack-mount dimension. NISE 300 also integrates with 6 mini-PCIe sockets and 2 COM Port interfaces, which makes it a real versatile box for various applications such as factory automation applications (PROFIBUS, DEVICE NET, EtherCAT, PROFINET, Ethernet IP), network applications (GbE LAN, Wi-Fi, GSM), and storage devices (mSATA). With the latest features and flexible module expansions, NISE 300 is definitely the top choice for M2M intelligence and factory automation platforms.


  • [Main Feature]
    • Onboard BGA type 4th Generation Intel® Core™ i5 Processor
    • Mobile Intel® QM87 PCH
    • 2 x USB 3.0; 2 x USB 2.0
    • 6 x mini-PCIe, 2 x RS232/ 422/ 485 with Auto Flow
    • Support 1 x mSATA, 1 x CFast and 2 x 2.5” SATA
    • User-friendly I/O Design; All I/O Interface at Front
    • Support Wireless Communication; Optional for Wi-Fi or 3G Modules
    • Support +9V and +30V DC Input; Support ATX Power Mode
    • Easy Replacement for RTC Battery
    • Dual Intel® GbE LAN Ports, Support WoL, Teaming & PXE


    CPU Support

    • Onboard BGA type 4th generation Intel® Core™ i5 processor
    • Core™ i5-4402E, Dual Core™, 1.6GHz

    Main Memory

    • 2 x DDR3/ DDR3L SO-DIMM Socket, support up to 8GB DDR3/ DDR3L 1333/ 1600 RAM, un-buffered and non-ECC

    Display Option

    • Three Independent Display
      - VGA+DVI-D (Through DVI-I Y Cable) + HDMI
    • Dual Independent Display
      - DVI-D + VGA
      - HDMI + VGA

    Front I/O

    Interface

    • ATX power on/ off switch
    • 1 x Remote Power ON/OFF Switch
    • 1 x Power Status/ 1 x HDD Access LEDs
    • 2 x USB3.0 ports (Blue Color, 900mA per each) 2 x USB2.0 Ports (500mA per each) 1 x DVI-I, 1 x HDMI 2 x DB9 for COM1 & COM2
      - support RS232/ 422/ 485 with Auto Flow Control
      - support 5V/ 12V/ Ring function by jumper setting
    • 2 x Intel® 82574L GbE LAN Ports, Support PXE / Teaming / WoL
    • 1 x External CFast socket
    • 1 x SIM Card holder
    • 1 x External RTC Li-ion Battery holder
    • 1 x Line out and 1 x Mic-in

    Internal I/O

    Interface

    • 4 x GPI and 4 GPO (5V, TTL Type)
    • 4 x COM Ports Box Header (RS232 only)
    • 1 x USB 2.0 Internal Connector, for USB dongle
    • 2 x USB 2.0 Internal Box Header

    Storage Device

    • 1 x CFast (SATA 3.0)
    • 1 x mSATA (SATA 3.0)
    • 2 x 2.5” HDD (SATA 3.0)

    Expansion Slot

    • 1 x mini-PCIe socket for GSM/ Wi-Fi
    • 1 x mini-PCIe socket for mSATA
    • 4 x mini-PCIe socket for expansion modules

    Power

    Requirement

    • ATX Power Mode
    • Power input: +9V and +30V DC input
    • Power adapter: Optional AC to DC power adapter (+19Vdc, 120W)

    Construction

    Aluminum and Metal Chassis with fanless design

    Environment

    • Operating Temperature: Ambient with air flow: -5°C to 55°C
      (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
    • Storage Temperature: -40°C to 85°C
    • Relative Humidity: 95% at 40°C
    • Shock Protection:
      HDD: 20G, half sine, 11ms, IEC60068-2-27
      CFast: 50G, half sine, 11ms, IEC60068-2-27
    • Vibration Protection w/ HDD Condition:
      Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
      Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

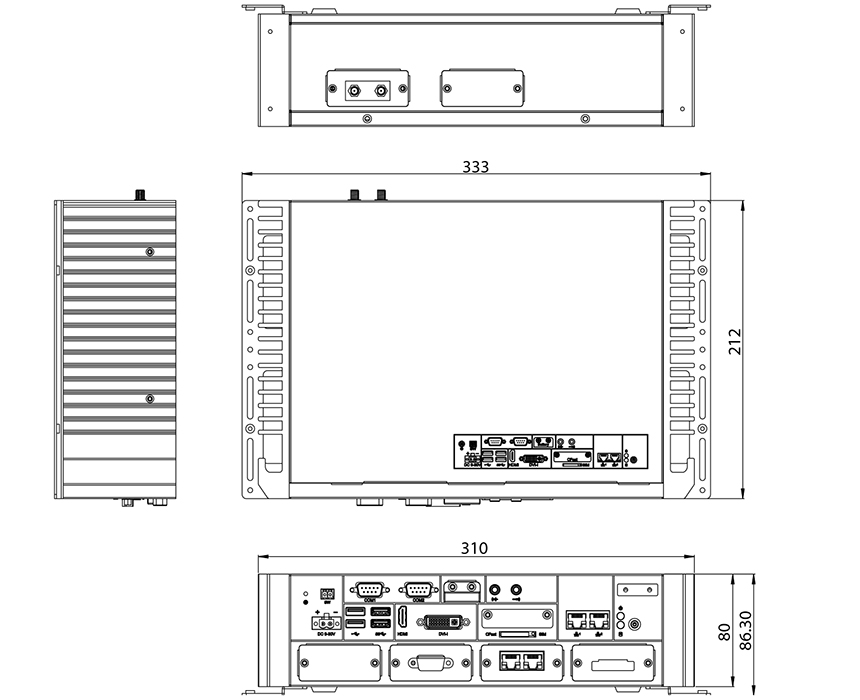

    •  310mm (W) x 212mm (D) x 80mm (H) without Wall-Mount bracket



    • CE
    • FCC Class A
