NISE 2310/ 2310E

  •  Intel Atom Dual Core D2550 Fanless System

Powered by Intel® Atom™ Dual Core D2550 Processor, NISE 2310/2310E is another utilized within industrial automation. It is designed with wide operating temperature and can be operated in rough environment. NISE 2310/2310E follows NISE guideline with fanless and cables-less concept. NISE 2310/2310E designed with 4 x LAN ports; Support WoL and LAN teaming and PXE functions. Other than above, NISE 2310/2310E also provide 6 x USB 2.0, dual independent display and super graphic performance for variety needs and one PCI or PCIex1 expansion is available. NISE 2310/2310E series support a wide range DC input from +9V to 36V enhances its reliability in different power condition in any demand.


[특장점]

  • Fanless and cables-less concept
  • Daul independent display(DVI-I + DVI-D / VGA(/w DVI-I to VGA connector) + DVI-D)
  • 4x intel Gbe LAN, 6x USB2.0, 4x COM
  • 1x PCI/PCI-e slot expansion

CPU Support

  • OnBoard Intel® Atom™ Dual Core D2550 processor, 1.86GHz, 1M L2 cache
  • Intel® 82801JIR ICH10 RAID

Main Memory

  • 2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECC
  • Pre-install 4G industrial-grade memory as the manufacture configuration for shipment

Dual Independent

Display Option

  • DVI-D + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type)
  • DVI-D + DVI-D

I/O Interface-Front

  • ATX Power on/off switch
  • HDD access/ power status LEDs
  • 2x DB9, RS232/422/485 w/ 2.5KV isolation protection
  • 2x USB2.0 4x GPO & 4x GPI
  • 1x Mic-in and
  • 1x Line-out
  • SIM card socket
  • CFast socket
  • 2x antenna holes

I/O Interface-Rear

  • 1x 2-pin DC input, Support +9 to 36VDC input
  • 1x DVI-I
  • 1x DVI-D
  • 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE
  • 4x USB2.0
  • 2x DB9, RS232/422/485

Device

  • 1x 2.5” SATA HDD driver bay
  • 1x External CFast socket
  • 1x External SIM card socket
  • 1x internal Mini-PCIe socket
    (Support optional WiFi or 3.5G wireless module, jumper free)

Expansion

  • NISE 2310: One PCI Expansion
    Add-on card length: 176mm max.
    Power consumption: 10W/slot max.
  • NISE 2310E: One PCIe x1 Expansion
    Add-on card length: 176mm max.
    Power consumption: 10W/slot max.

Power Requirements

  • Support +9V to 36VDC input; Support ATX power mode

Construction

  • Aluminum Chassis with fanless design

Environment

  • Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade device
  • Storage temperature: -30°C to 85°C
  • Relative humidity: 10% to 93% (Non-condensing)
  • Shock protection:
    - HDD: 20G, half sine, 11ms, IEC60068-2-27
    - CFast: 40G, half sine, 11ms, IEC60068-2-27
  • Vibration protection w/HDD
    - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64
    - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6

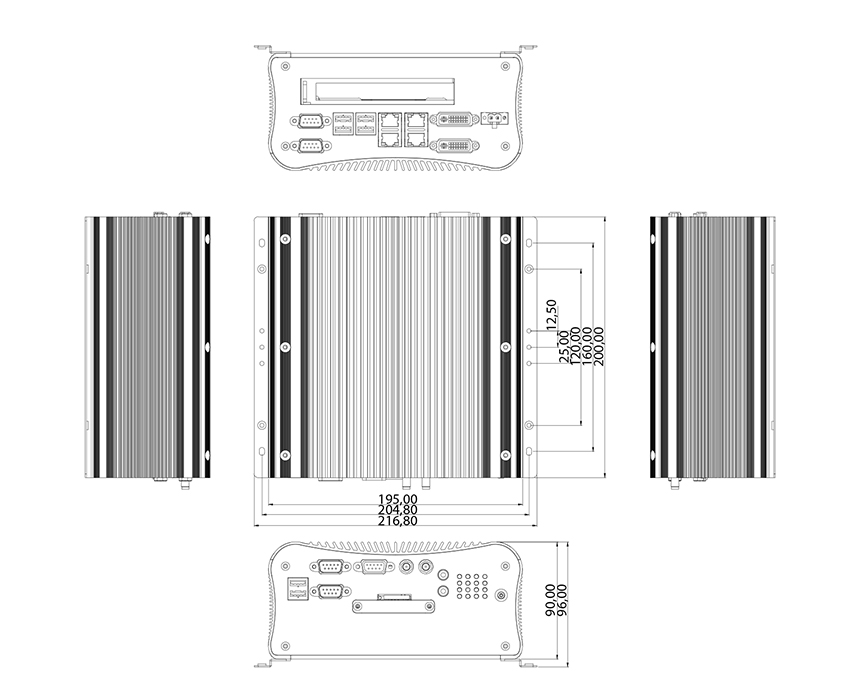

  • 195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”)


  • CE approval
  • FCC Class A
