APPD 1200T

  • 12.1" IP65 Industrial 4:3 SVGA LED Flush Touch Monitor
김준호 과장 : 031-737-8812

12.1" 4:3 LCD display APPD 1200T is based on a 5-wire resistive touch screen. It has 450 nits brightness and can support resolutions up to 800 x 600. APPD 1200T is ideal for space-critical environments where systems and displays are kept apart. In addition, APPD 1200T adopts a flush panel design and has IP65 front panel. APPD 1200T provides prevailing video interfaces: VGA and DVI, supporting both digital and analog signals; touch screen can be connected with RS232 or USB ports. Moreover, APPD 1200T supports 12~24VDC power input and offers panel mount and VESA mount, allowing users to choose the mounting method that meets their situation.


  • Dual touch screen interface: RS232 and USB
  • Ultra slim in depth
  • Dual display input interface: analog VGA and DVI-D


  • LED Size: 12.1", 4:3
  • Resolution: SVGA 800 x 600
  • Luminance: 450cd/m2
  • Contrast ratio: 700
  • LCD color: 16.2M
  • Viewing Angle: 65(U), 75(D), 80(L), 80(R)
  • Backlight: LED

Touch Screen

  • 5-wire resistive (flush panel type)
  • Light transmission: 80%
  • Interface: USB and RS232

Rear I/O

  • Touch screen interface port: RS-232 (1 x DB9)/USB Type A
  • Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)
  • DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

  • OSD keypad
  • Multilanguage OSD

Mechanical &


  • Color: pantone black
  • IP protection: IP65 front
  • Mounting: panel/wall/stand/VESA 100mm x 100mm
  • ŒŒPower input: 12V~24VDC
  • Power adapter: optional AC to DC power adapter (+12V, 60W)
  • Vibration:
    IEC 68 2-64
    2Grms @ sine, 5~500Hz, 1hr/axis (Operating)
    2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
  • Shock:
    IEC 68 2-27
    20G@wall mount, half sine, 11ms
    Operating temperature: -5°C to 50°C
    Storage temperature: -20°C to 75°C
  • Operating humidity: 10%~90% relative humidity, non-condensing

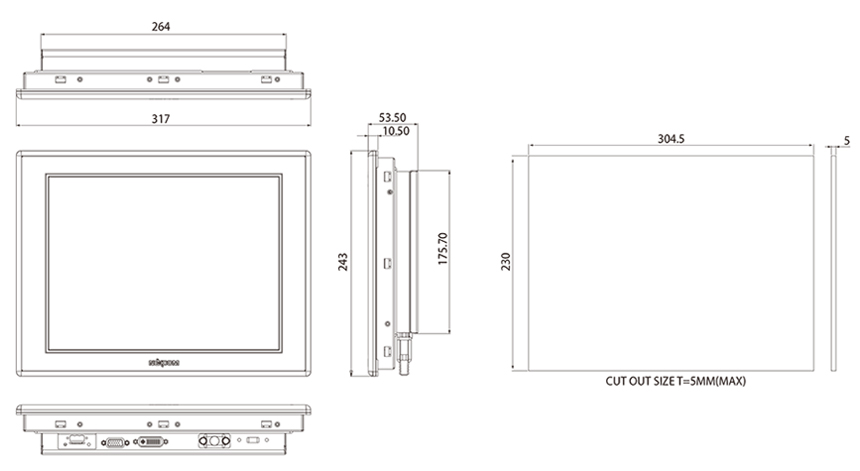

  • Dimension: 317 x 243 x 53.5mm
  • Weight: 2.9Kg

  • CE approval
  • FCC Class B
