APPD 1900T

  • 19" IP65 Industrial 4:3 SXGA LCD Flush Touch Monitor
김준호 과장 : 031-737-8812

19" 4:3 LCD display APPD 1900T is based on a 5-wire resistive touch screen. It has 350 nits brightness and can support resolutions up to 1280 x 1024. APPD 1900T is ideal for space-critical environments where systems and displays are kept apart. In addition, APPD 1900T adopts a flush panel design and has IP65 front panel. APPD 1900T provides prevailing video interfaces: VGA and DVI, supporting both digital and analog signals; touch screen can be connected with RS232 or USB ports. Moreover, APPD 1900T supports 12~24VDC power input and offers panel mount and VESA mount, allowing users to choose the mounting method that meets their situation.


[특장점]

  • IP65 compliant plastic front bezel with flush panel by 5-wire touch screen
  • Dual display input interface: analog VGA and DVI-D
  • Shares identical appearance with APPC series
  • Dual touch screen interface: RS232 and USB
  • Ultra slim in depth
  • OSD Multilanguage function


Panel

  • LED Size: 19", 4:3
  • Resolution: SXGA 1280 x 1024
  • Luminance: 350cd/m2
  • Contrast ratio: 1000
  • LCD color: 16.7M
  • Viewing Angle: 80(U), 80(D), 85(L), 85(R)
  • Backlight: LED

Touch Screen

  • 5-wire resistive (flush panel type)
  • Light transmission: 81%
  • Interface: USB and RS232

Rear I/O

  • Touch interface port: RS-232 (1 x DB9)/USB Type A
  • Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)
  • DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

  • OSD keypad
  • Multilanguage OSD

Mechanical

& Environment

  • Color: pantone black
  • IP protection: IP65 front
  • Mounting: panel/wall/stand/VESA 100mm x 100mm
  • Power input: 12V~24VDC
  • Power adapter: optional AC to DC power adapter (+12V, 60W)
  • Vibration:
    IEC 68 2-64
    2Grms @ sine, 5~500Hz, 1hr/axis (Operating)
    2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
  • Shock:
    IEC 68 2-27
    20G@wall mount, half sine, 11ms
  • Operating temperature: -5°C to 50°C
  • Storage temperature: -20°C to 75°C
  • Operating humidity: 10%~90% relative humidity, non-condensing

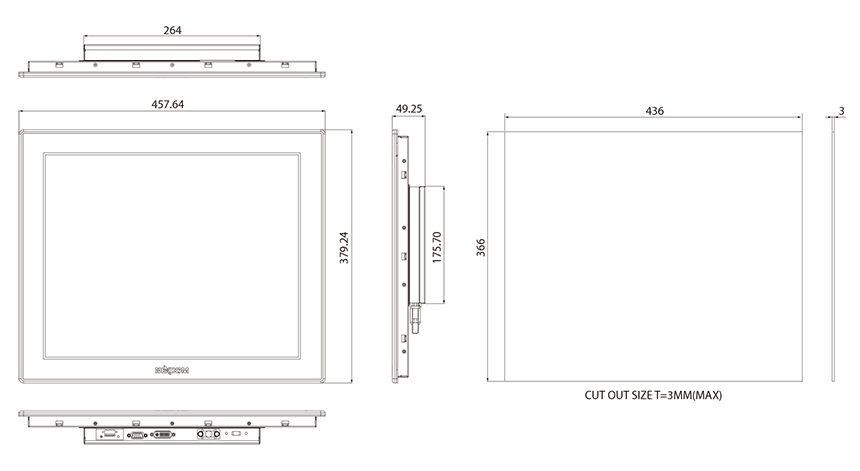

  • Dimension: 457.64 x 379.24 x 49.25mm
  • Weight: 5.4 Kg


  • CE approval
  • FCC Class B
