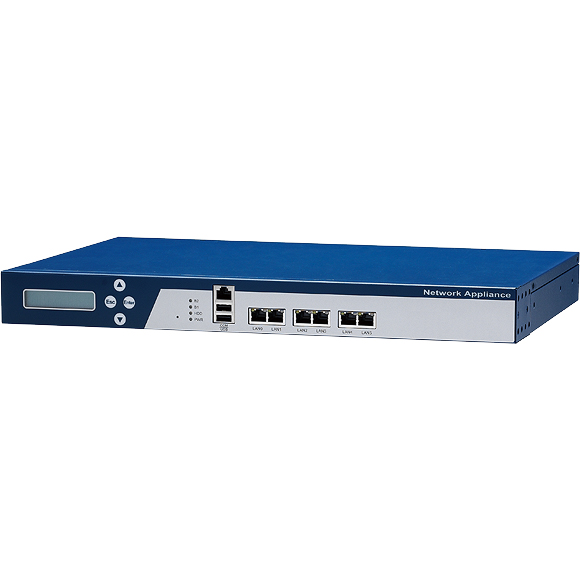

NSA 1150A

  • New Intel® Atom™ Processor C2358, up to 2 Cores 1.7GHz with Quick Assist, BGA Type, with 6 PCIe GbE LAN Ports

Main Feature

  • Intel® Atom™ processor C2358, 2 Core 1.7 GHz with Quick Assist, BGA type
  • DDR3 1333MHz Long-DIMM sockets, up to 16GB ECC or non-ECC SDRAM
  • Support 6 PCIe GbE LAN ports
  • Support 2 ports LAN module(optional)
  • Internal one 2.5" HDD bay
  • Two pairs dual latch bypass

 Based on the new Intel® Atom™ processor C2358, the NSA 1150 has packed excellent performance per watt, accelerated data cryptography and LAN functions. The NSA 1150 can create safe environments for network communication to connect employees and offices.

 The workplace is more connected than ever in part because of unified communication, online collaboration and the trend of bring our own device. To this end, NEXCOM has built the network security appliance NSA 1150 with dual core SoC Intel® Atom™ processor C2358 integrated with Intel® QuickAssist Technology. The NSA 1150 is designed to help increase both network responsiveness and security by distributing computing power to core applications, ranging from mail servers to firewalls, while using Intel® QuickAssist Technology for data encryption and decryption, which were processed by software or a discrete hardware accelerator.

 The NSA 1150 has up to 32 GB of DDR3 1600/1333 memory and six LAN ports with support for I/O virtualization technologies. The NSA 1150 can increase overall network throughput to manage high network traffic. In addition, the NSA 1150 provides one PCIe x4 slot for function expansion.

Main Board

  • NSB1150
  • Intel® Atom™ processor C2358, 2 Core 1.7 GHz with Quick Assist, BGA type

Main Memory

  • 2 x 240-pin DDR3 1333MHz DIMM sockets, up to 16GB ECC or non-ECC SDRAM

LAN Features

  • 2 x LAN chip: Intel® i211
  • 1 x MARVELL PHY: 88E1543
  • Support 10/100/1000 link speed
  • LAN bypass: 2 pairs
  • 6 x copper ports
  • Support 2 ports LAN module (optional)


  • 1 x PCIex4 slot (optional)

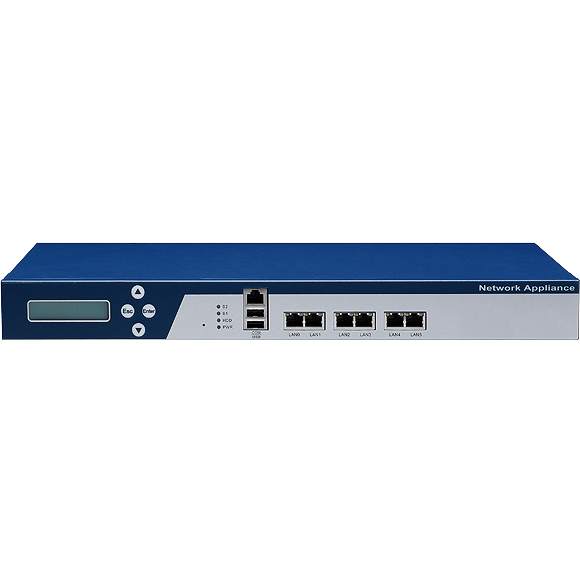

I/O Interface-Front

  • 2 x USB 2.0 ports
  • 1 x RJ45 type console port
  • 6 x copper ports
  • 1 x reset button

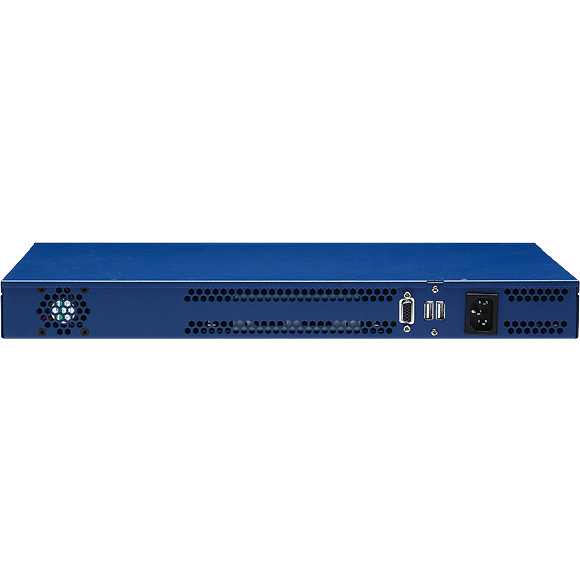

I/O Interface-Rear

  • 2 x USB 2.0 ports
  • 1 x VGA port


  • 1 x 2.5" HDD bay
  • 1 x CF socket

Power Input

  • 65W Power supply


  • Operating temperatures: 0°C~40°C
  • Storage temperature: -20°C~75°C
  • Relative humidity: 10%~90% non-condensi

  • Dimensions  : Chassis dimension: 430mmx 260mm x 44mm
  • Weight :
    - Without packing 5Kg
    - With packing: 7Kg
