Industrial IoT Automation Solutions
• Onboard
6th Generation Intel® Core™ Mobile Processor (BGA Type)
• 1x DDR4
SO-DIMM Socket, 2133MHz, Supports Up to 16 GB
• Triple
Independent Display (DVI-I, DisplayPort)
• Compact
Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
• 1x
Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay,
Supports RAID 0/1
• Rich I/O
Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
• Supports
Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
• Supports
Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
• Cincoze
MEC Module Kits for Various I/O Expansion
• 2x
Full-size Mini-PCIe Slots for Wireless and I/O Expansion
• Wide
Operating Temperature (-40°C to 70°C)
• E-Mark
(E13, No.10R-0514273) Certified
|
Dimension |
203 x 142 x 66.8 mm (WxDxH): |
|
Housing |
Extruded Aluminum with Heavy Duty Metal |
|
Weight |
1.65 kg |
|
Fanless Design |
|
|
Cable-less Design |
|
|
Unibody Chassis |
|
|
Jumper-less Design |
|
|
Processor |
• On board Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz, 15W TDP) • Onboard Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP) • Onboard Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz, 15W TDP) |
|
Chipset |
SoC |
|
BIOS |
AMI 8Mbit SPI BIOS |
|
Memory |
1x DDR4 260-pin SO-DIMM Socket, Support up to 16 GB (2133MHz, Un-buffered and Non-ECC type) |
|
Graphics |
• Integrated Intel® HD Graphics • Three Independent Display |
|
Audio |
• Realtek® ALC888-GR • High Definition Audio |
|
Storage |
• 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) (One Internal, One Front Accessible &
Hot-swappable) • 2x mSATA (shared by Mini-PCIe socket) (Gen2) |
|
Power Requirement |
• Support AT/ATX Power Type • Power Input Voltage 9~48VDC • One 3-Pin Terminal Block Connector • Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A
120W |
|
Protection |
• Reverse Power Input Protection • Over Voltage Protection: 58V • Over Current Protection: 15A • ESD Protection: +/-15kV (air), +/-8kV (contact) • Surge Protection: 3kW |
|
OS |
Windows |
|
Certifications |
• EMC: CE, FCC Class A • Railway: EN50155, EN50121-3-2 • In-vehicle: E-Mark (E13, No.10R-0514273) Certified |

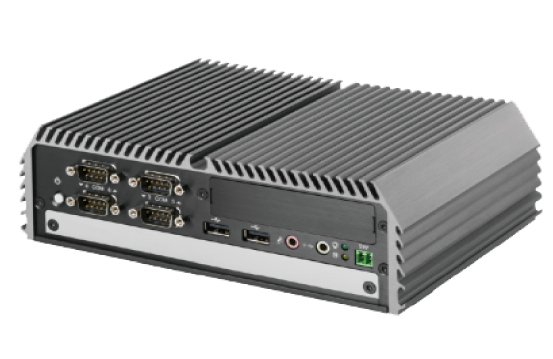

High Performance, Compact and Modular Rugged Embedded Computer
