Industrial IoT Automation Solutions
◎ Onboard Intel® Atom™ Processor E3826 Dual Core 1.46GHz
◎ One DDR3L SO-DIMM Support DDR3L 1066MHz Up to 8G
◎ Dual Intel® I210 GbE LAN Ports, Support WoL, Teaming,
Jumbo Frame, PXE
◎ 초소형 컴팩트한 사이즈 (150x105x56.02mm)
◎ 듀얼 디스플레이 지원, Output from One DVI-I Port
◎ 영하 25˚C 에서 영상 70˚C의 광범위한 범위의 온도에서 사용 가능
◎ 9~48VDC Input 지원, AT/ATX 파워 모드 지원
◎ CMI (Combined Multiple I/O) Interface for I/O Module
Expandability
◎ 다양한 장착 옵션 사용 가능 (VESA, DIN 레일, 측면/벽 장착)
System
Processor
• Intel® Atom™ Processor E3826 (1M Cache, Up to 1.46 GHz SoC, 7W TDP)
• Intel® Atom™ Processor E3845 (2M Cache, Up to 1.91 GHz SoC, 10W TDP)
• Intel® Celeron® Processor J1900 (2M Cache, Up to 2.42 GHz SoC, 10W TDP)
BIOS
• AMI 64 Mbit SPI BIOS
Memory
• 1x DDR3L 204-pin SO-DIMM, support up to 8GB (1066/1333MHz, un-buffered and non-ECC type)
Graphics
• Integrated Intel® HD Graphics
• Two Independent Display
Audio
• Realtek® ALC888S
• High Definition Audio
I/O Interface
• 1x DVI-I Connector, Up to 1920 x 1080
• 2x GbE LAN Ports (Support Wake On Lan, Teaming, Jumbo Frame, PXE), RJ45
-GbE1: Intel® I210-IT
-GbE2: Intel® I210-IT
• 2x RS-232/422/485 with Auto Flow Control, DB9
• 1x USB 3.0 & 3x USB 2.0 (Type-A)
• 1x Mic-in and 1x Line-out, Phone Jack 3.5mm
• 1x ATX Power On/Off Switch Button
• 1x AT/ATX Mode Switch
• 1x Remote Power On/Off Connector, 2-Pin Terminal Block
Storage
• 1x mSATA (SATA 2.0, Shared by Mini-PCIe Socket)
• 1x 2.5" SATA HDD Bay (Optional 1x Half-Slim SSD, SATA 2.0)
Expansion
• 1x CMI Interface for CMI Modules
• 2x Full-size Mini-PCIe (Supports Wireless & I/O Expansion)
• 1x SIM Socket
• 1x Universal I/O Bracket
• 2x Antenna Holes
Other Function
• Instant Reboot Technology (0.2 sec)
• Watchdog Timer: Software Programmable Supports 256 Levels System Reset
Power Requirement
• Support AT/ATX Power Type
• Power Input Voltage 9~48VDC
• 3-Pin Terminal Block Connector
• Optional Power Adapter AC/DC 12V/5A 60W
Physical
• Dimension (WxDxH): 150 x 105 x 52.3 mm
• Weight: 0.86kg
• Construction: Extruded Aluminum with Heavy Duty Metal
• Mounting: VESA / Wall Mounting (Optional DIN-Rail / Side Mounting)
• Unibody Design
• Fanless Design
• Jumper-less Design
Protection
• Reverse Power Input Protection Supported
• Over Voltage Protection (OVP) Up to 51V
• Over Current Protection (OCP) 120V/ 20A
• ESD Protection Air Discharge: 8 kV; Contact
Discharge: 4 kV (by IEC 61000-4-2)
Operating System
• Windows® 10
• Windows® 8.1
• Windows® 7
Environment
• Operating Temperature: -25°C to 70°C (With extended temperature peripherals; Ambient with
Air Flow by IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95% RH @ 40°C (Non-condensing)
• Shock: 50 Grms (With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
• Vibration: Random: 5 Grms (With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
Certification
• CE
• FCC Class A

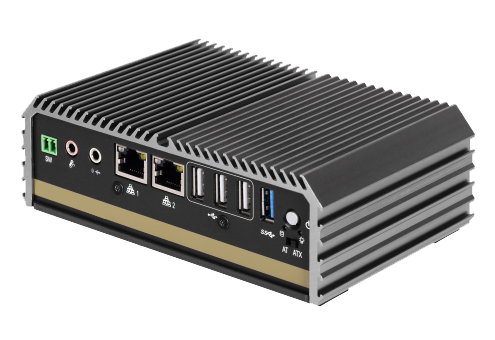

Intel® Atom™ E3826 보급형 팬리스 임베디드 컴퓨터
